Air Quality Meter with Dust Particle Counter

AUD $420.00

Model No.:
AQ-B6

This superb air quality monitor provides precise & reliable PM1, 2.5, 10 inhalable micrometers particle, Total volatile organic compounds (TVOC), Formaldehyde (HCHO), Carbon Dioxide (CO2) readouts, as well as 6 of various sizes of air particle counter concurrently. Past 24 hours of tested measurement can be presented in the format of graphical trend for record tracing.

  1. 7 major air measurements in one single device: PM1, PM2.5, PM10, TVOC, CO2, HCHO, air dust particle counter
  2. Air temperature & humidity measurements

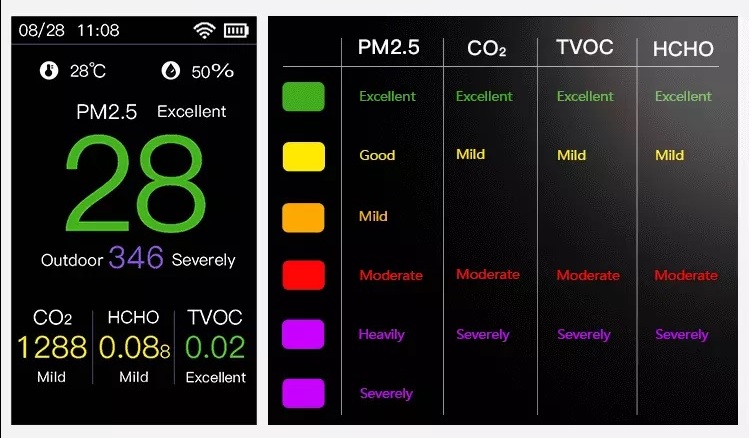

  3. Graphical display for the previous 24 hours readouts on device
  4. Import sensor & processor for fast response & accurate measurements
  5. 2″ TFT colour LED display
  6. Power saving mode
  7. Low battery indicator
  8. Rechargeable in-built lithium battery
  9. Handheld or desktop mounting
  • Air Quality Testing
  • Medical Environment
  • HVAC
  • Commercial
  • Manufacturing Environment
Model No. AQ-B6
PM1.0 / PM2.5 / PM10 Measuring Method Laser scattering
Measuring Range 0 – 999 ug/m³
Resolution 1 ug/m³
Accuracy ± 5%
Response Time ≤ 5s
TVOC Measuring Method Electrochemistry
Measuring Range 0.22 – 9.99 mg/m³
Resolution 0.01 mg/m³
Accuracy ±0.03 mg/m³ or 10% whichever is greater
Response Time < 60s
CO2 Measuring Method Non Dispersive Infra Red (NDIR)
Measuring Range 0 – 9999 ppm
Resolution 1 ppm
Accuracy ± 3%
Response Time ≤ 5s
HCHO Measuring Method Electrochemistry
Measuring Range 0 – 9.999 mg/m³
Resolution 0.01mg/m³
Accuracy ±0.03 mg/m³ or 10% whichever is greater
Response Time < 60s
Dust Particle Counter 0.3, 0.5, 1.0, 2.5, 5.0, 10 μm
Temperature Range -40 ~ 99℃
Humidity Range 0 ~ 100%RH
Display 3.2″ TFT colour screen
Graphical Display Last 24 hours of historical data (TVOC, CO2, PM2.5) in Real Time
Working Temperature 0 ~ 50 ℃
Working Humidity 0 ~ 90% RH
Operating Time Approx. 5 hours continuously
Battery Capacity 1800mAh
Dimensions 66 × 115 × 52 in mm
Weight 350g

– 1 x Air Quality Meter w/ Dust Particle Counter

– 1 x In-built Rechargeable Lithium Battery

– 1 x USB Cable with Power Adapter

– 1 x Instruction Manual

– 1 x Standard Factory Packing
