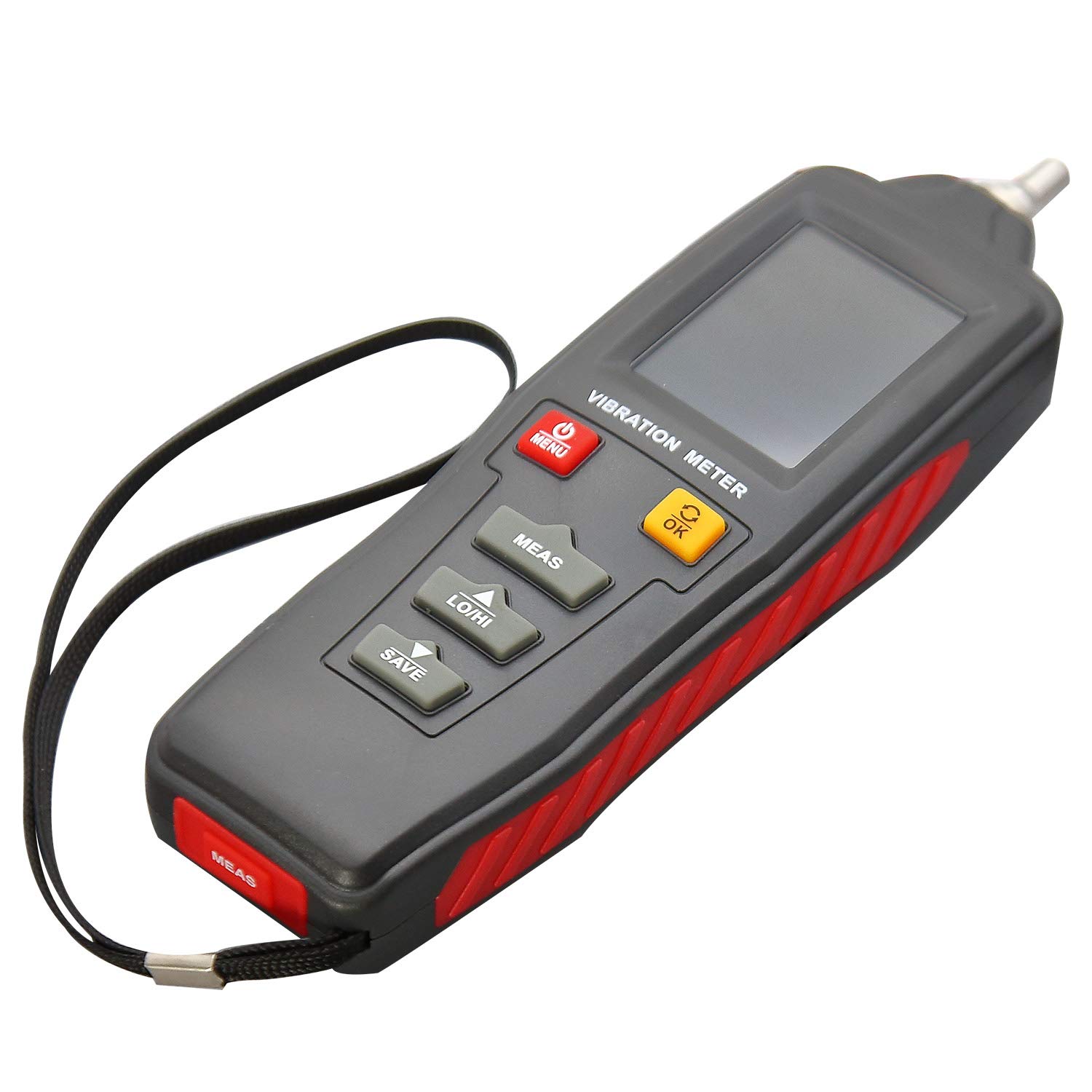

This portable vibration meter is engaged with highly sensitive piezoelectric sensor for accurate measurement. It provides acceleration, velocity, displacement readouts, as well as 4 various levels of vibration intensity. Recorded data set can be viewed on display in tabulated style for future reference. It also features real time graphical trend analysis for each specific measurement, 90 degree rotating screen, calibration function & more. Package comes with additional long (approx. 48mm) probe to suit various applications.
- 4 in1 vibration measurements: Acceleration (m/s), Speed (mm/s), Displacement (mm), Vibration intensity
- Switch acceleration measurement between high and low frequency, high frequency (1KHz~10KHz), low frequency (20Hz~1KHz).
- Real time graphical display for each type of measurement
- Hundred sets of data storage with viewing on screen in tabulated format
- 90 degree screen rotating
- Fast response
- Calibration function
- Flashlight
- Battery level indicator
- Automatic shutdown
| Vibration Acquisition | Piezoelectric ceramic accelerometer (Shear type) | |
| Acceleration Measurements | Range | 0.1 ~ 199.9 m/s2 |
| Accuracy | 0 ~ 2 m/s2: ≤ ±10%
≥ 2 m/s2: ≤ ±5% |
|
| Frequency range | High frequency: 1KHz ~ 15KHz (HI)
Low frequency: 20Hz ~ 1KHz (LO) |
|
| Speed
Measurements |
Range | 0.1 ~ 199.9mm/s RMS |
| Accuracy | 0 ~ 2 mm/s: ≤ ±10%
≥ 2 mm/s: ≤ ±5% |
|
| Frequency range | 20Hz ~ 1KHz (LO) | |
| Displacement
Measurements |
Range | 0.001 ~ 1.999mm |
| Accuracy | 0.01 ~ 0.02 mm: ≤ ±10%
≥ 0.02 mm: ≤ ±5% |
|
| Frequency range | 20Hz ~ 1KHz (LO) | |
| Vibration Intensity | Good: Green colour
Satisfactory: Yellow colour Unsatisfactory: Orange colour Unacceptable: Red colour |
|

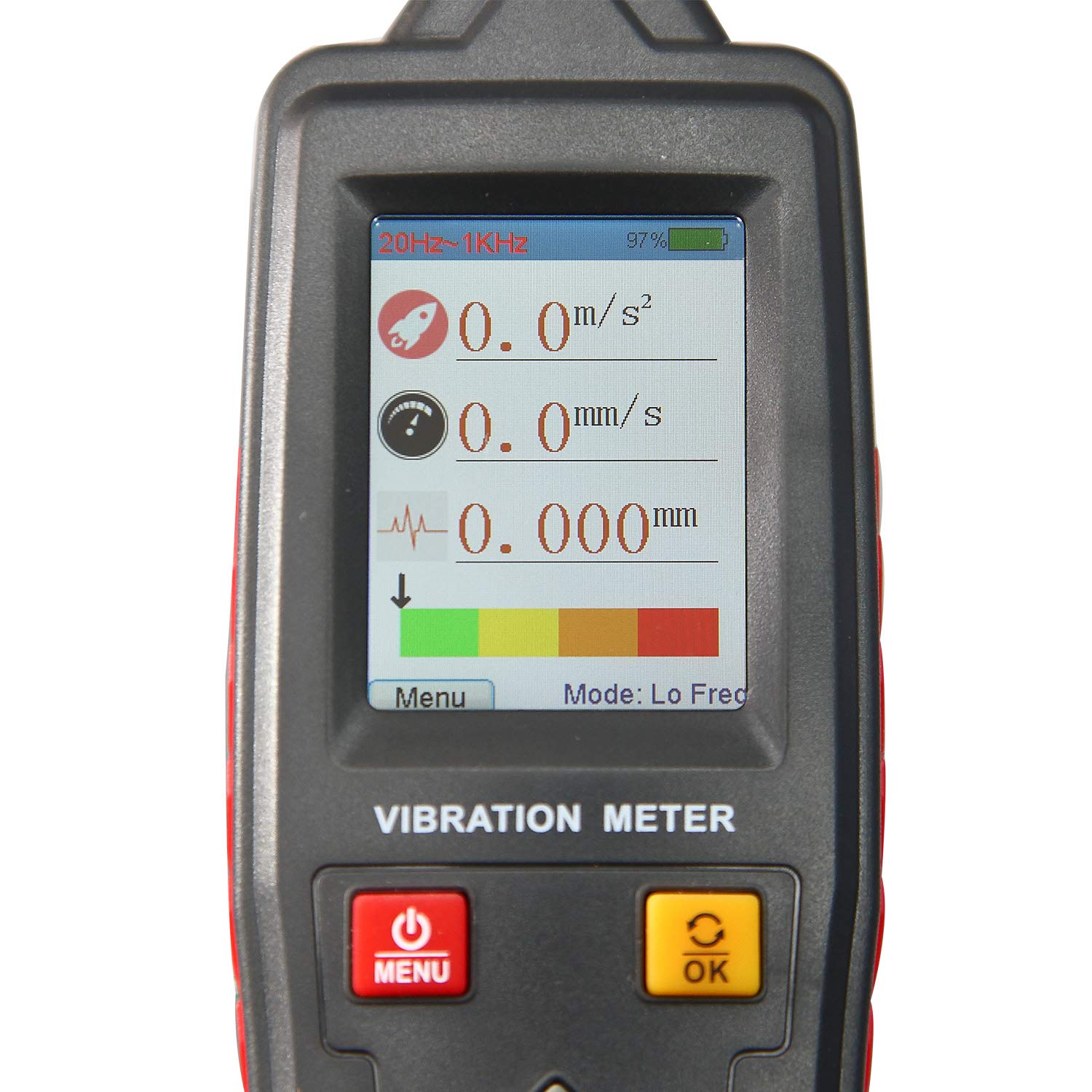

| Screen | 4 ways rotating LCD colour display | |
| Data Storage | 7 groups (Approx. 30 data sets each group) | |
| Graphical Display | Real time graphical analysis on screen for acceleration, speed & displacement measurements | |
| Feature | Flash light on measurement spot | |
| Brightness | Adjustable to suit various environment | |
| Calibration | Yes | |
| Auto Power Off | Selectable interval from 0 to 9 mins | |
| Operating Temp. | 0 ~ 40°C | |
| Operating Humidity | 30 ~ 90% RH | |
| Power Supply | 2 x 1.5V AAA batteries | |
| Dimensions (L*W*H) | 180 x 54 x 30 mm | |
| Weight | 250g | |
- 1 x Vibration Meter
- 1 x Standard 15mm Vibration sensor

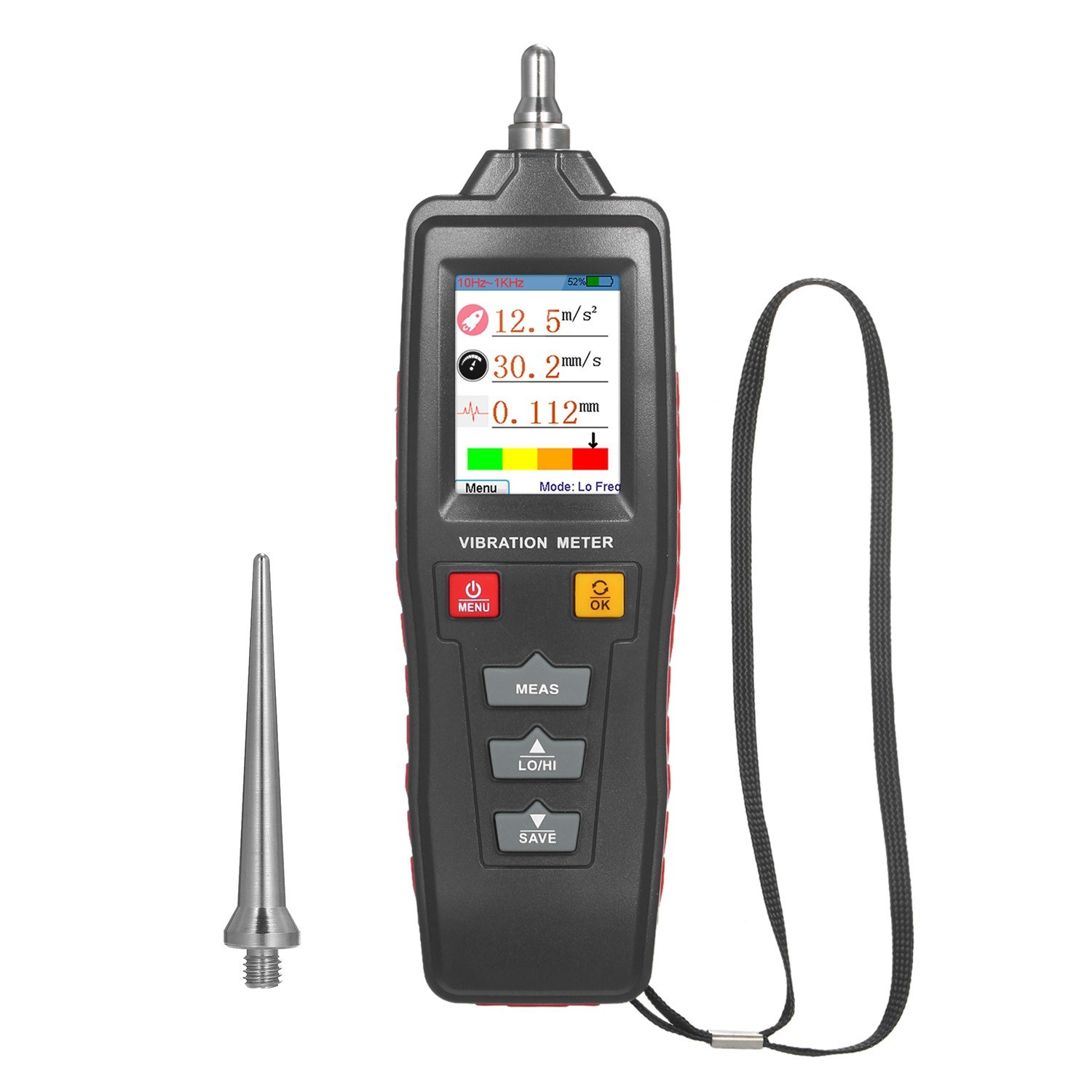

- 1 x 48mm Length Vibration Probe
- 2 x 1.5V AAA Batteries
- 1 x Carry Case
- 1 x User’s Manual
- 1 x Factory Standard Packing
