AUD $230.00
Need Help? Call 1300 788 213 Now to Talk to an Expert!

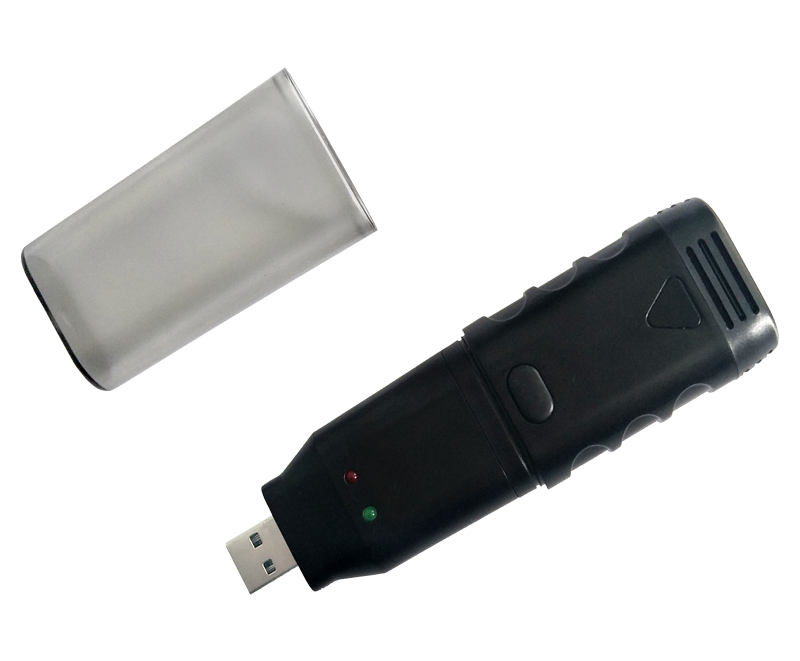

This high accuracy dry ice temperature data logger is suitable for the like of vaccine storage application. Measuring temperature is able to achieve as low as -80°C with accuracy between 0.5 to 1 degree °C upon temperature range. Logged data can be exported to PC directly in tabulated format, or download it via provided software for graphical view & further analysis. Housing is IP67 rated to strengthen the protection of device in such low temperature environment. Battery is capable to last up to 120 days at the lowest temperature point.
- Measurement of dry ice temperature point
- Portable design with precise & consistent in measurements
- Sampling interval from 10 sec to 18 hours
- Real time measurements with LED status signal indicators
- Data exportation in pdf, xls, csv, txt or dlg file format directly to PC
- Professional software for data analysis & graphical presentation
- Data logging method: Immediately, manual or specific time range
- IP67 Protection Rating
- EN12830, RoHS, CE certifications
| Model | DIT-170 | |
| Temperature | Measurement range | -80 to 70°C |
| Accuracy | -35 to 70°C : ±0.5°C
< -35°C : ±1.0°C |
|
| Resolution | 0.1°C | |
| Sensor Type | PT1000 | |
| Indication | LED status signal light | |
| Memory Capacity | Approx 17,280 readings | |
| Sampling Interval | From 10s to 18h | |
| Interface | USB type A | |
| Alarm | Configurable Hi / Low alarm | |
| Power Supply | Replaceable 1/2AA 3.6V Lithium Battery, 1200mAh | |
| Battery Life | Approx. 120 days @ -80°C, 15 mins interval | |
| Case Material | ABS, TPU, PC | |
| Operating Temperature | -80 to 70°C | |
| Storage Temperature | -80 to 70°C | |
| System | Compatible to Windows 7,8,10, XP, Vista OS | |
| Protection Rating | IP67 | |
| Certifications | EN12830, RoHS, CE | |
| Dimensions (LxWxD) | 120 x 37 x 23 in mm | |
| Weight | Approx. 67g | |
- 1 x USB Dry Ice Temperature Data Logger
- 1 x Data Logging Software
- 1 x 1/2AA 3.6V Lithium Battery
- 1 x Wall Mounting Bracket
- 1 x Instruction Manual
- 1 x Standard Factory Packing
